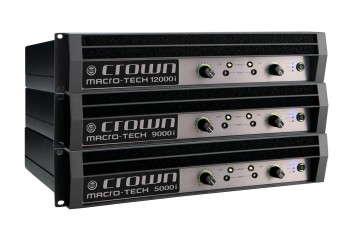

Macro Tech MA 12000i Power Amplifier

The i-Series continues the Macro-Tech legacy of unparalleled sonic accuracy and detail, putting sound quality above all else. For over two decades, Crown International's Macro-Tech Series has been embraced by the professional sound reinforcement industry as the most reliable, best sounding analog power amplifier line that money can buy. Now, thanks to the advent of newer technologies, Crown has undergone a careful yet significant refresh of the range, which was globally re-launched at Musikmesse Prolight+Sound in Frankfurt as the Macro-Tech i Series. Comprised of three models--the MA-5000i, MA-9000i and MA12000i (being sold here)--the Macro-Tech i Series builds upon its predecessor by incorporating Crown's advanced, patented Class-I circuitry, which efficiently delivers significantly greater power while simultaneously reducing overall amplifier weight by more than half. The new lineup is also equipped with comprehensive status, fault, and load monitoring via standard Ethernet networking and Harman Pro's HiQnet? and System Architect software. Furthermore, a universal power-factor corrected power supply ensures that the new models can be used literally anywhere in the world, delivering full rated power regardless of where touring schedules may lead. The i Series continues the Macro-Tech legacy of unparalleled sonic accuracy and detail, putting sound quality above all else * Patented, cutting-edge Class-I circuitry gets more power out of amplifier with less waste * Rugged construction ensures that all Macro-Techs are built to withstand years of abuse on the road * Global Power Supply - designed to deliver maximum power no matter where your schedule takes you * Studio-quality analog signal processing with built-in load, line voltage,input and output monitoring * Standard Ethernet networking via System Architect provides integrated monitoring and control to give system operators access to the system from any location Power Output (Guaranteed minimum power in watts at 20Hz-20kHz with 0.35% THD) * 2 ohm dual (per ch), 20 mS BURST: 6000W * 2 ohm dual (per ch), 20Hz-20kHz: 3,750W * 2 ohm dual (per ch), 1kHz: 3,750W * 4 ohm dual (per ch): 4,000W * 8 ohm dual (per ch): 2,100W * 4 ohm bridge: 7,000W * 8 ohm bridge: 9,000W Specs: Performance * Frequency Response (at 1 watt, 20 Hz - 20 kHz into 8 ohms): ±0.25 dB. * Signal to Noise Ratio below rated full-bandwidth power, A-weighted: >108 dB. * Total Harmonic Distortion (THD) at 1 watt into 8 ohms: < 0.1%. * Total Harmonic Distortion (THD) Plus Noise at full rated power: <0.35%, 20 Hz to 20 kHz. * Intermodulation Distortion (IMD) 60 Hz and 7 kHz at 4:1, from full rated output to –30 dB: < 0.35%. * Damping Factor (20 Hz to 100 Hz at 8 ohms): > 5000. * Crosstalk (below rated power, 20 Hz to 1 kHz): > 80 dB. * Common Mode Rejection (CMR) (20 Hz to 1 kHz): 55 dB, typically >70 dB. * DC Output Offset (shorted input): < ± 3 mV. * Input Impedance (nominal): 10 kilohms balanced, 5 kilohms unbalanced. * Maximum Input Level: +20 dBu typical. * Network: Onboard TCP/IQ and HiQnet, compatible with standard 100 MbEthercom hardware. * Load Impedance: (Note: Safe with all types of loads) Stereo: 1/2/4/8/16ohms. Bridge Mono: 2/4/8 ohms. * Input Sensitivity (referenced to 8 ohm rated output): 1.4V, 32 dB gain,and 26 dB gain. * Voltage Gain (referenced to 8 ohm rated output): 39.3 dB to 24.5 dB MAi-5000i: 37.1 dB to 22.2 dB MAi-9000i: 37.9 dB to 23.0 dB MAi-12000i: 39.3 dB to 24.5 dB * Required AC Mains: Universal AC input, 100-240VAC, 50/60 Hz (±15%).Maximum AC mains voltage 264VAC. * AC Line Connector: Five cordsets supplied with amplifier (USA, UK,European, Australia, India). Front Panel Controls and Indicators * Bridge Mode Indicator: Amber LED illuminates when the amplifier is set to Bridge-Mono mode. * Ready Indicator: Red LED, one per channel. Bright red: Channel is ready to pass audio. Red: Onset of compression (thermal event or fan failure). Off:Thermal event has occurred. * Signal Indicators: One green LED per channel. Solid green: Input signal is above –40 dBu. Bright green: Channel’s output signal has reached the onset of audible clipping. * Power Indicator: Blue LED indicates amplifier has been turned on and AC power is available. The LED will flash when the AC line voltage is 10% above or below the nominal rated value. * Data Indicator: Yellow LED on front panel indicates network data activity.Data indicator flashes only when the amplifier is polled for data, or is polled to see whether it is online * Power Switch: Push-on/push-off switch with built-in green AC mains present indicator. * Volume Control: Precision detented attenuator with 31 steps,press-and-hold mute function. * Volume Control LED Ring: A ring of green LEDs around each volume control show the position of the control. Entire ring flashes when channel is muted.Can be converted to be a level meter. Back Panel Controls, Indicators and Connectors * Power Cord Connector: Locking, detachable 20 amp IEC inlet. Voltage range is indicated above IEC inlet. * Reset Switch/Circuit Breaker: If the current draw of the amplifier exceeds safe limits, this breaker automatically disconnects the power supply from theAC mains. The switch resets the circuit breaker. * Output Connectors: Two high-current, 50A Neutrik® Speakon® NL4MLP (mate swith NL4FC or NL4), one per channel. Ch 1 Speakon® is wired with Ch 1 and Ch 2outputs for use with single 4-conductor cable. Two pairs of high-current, 60Acolor-coded 5-way binding posts (for banana plugs, spade lugs or bare wire). * Analog Input Connectors: A 3-pin female XLR connector for each channel. * Analog Loop Thru Connectors: Two male XLR passive analog loop through. * Mode Switch/Indicator: Sets amplifier to Stereo, Bridge, or Input Y mode.OFF=Stereo, YEL=Bridge, GRN=Y. * Network Connector: This Neutrik® Ethercon connector accepts an RJ-45connector for TCP/IQ or HiQnet networking. Next to the connector is a yellowLINK ACT indicator that shows network activity, and a green 100Mb indicatorthat shows a 100Mb network connection. * Data Indicator: Yellow LED on back panel indicates network data activity.Data indicator flashes only when the amplifier is polled for data, or is polled to see whether it is online. * Preset Indicator: Yellow LED flashes to signal the number of the current preset if active. * Input Sensitivity Switch: Three-position switch providing 1.4V, 32 dB, and26 dB settings for both channels. Firmware/Software * Firmware can be updated at www.crownaudio.com > Support >Downloads. * Software features: Same as PIP-Lite module (except no Listen Bus): User Presets, Clip Event Monitor, Input Signal Level Monitor, Output Signal Level Monitor, Thermal Headroom Level Monitor, Power/Standby Control, Signal Mute,Polarity Inverter, Input Signal Fader, Dynamic Gain Monitors (Ghost Faders),Amplifier Information, User and Channel Labels, Amplifier Mode, Amplifier Output Mode, Line Voltage Monitor, Error Reporting, Auto Standby, Input Signal Compressor/Limiter, Peak Voltage Limiter, Average Power Limiter, Clip Eliminator, Thermal Limiter, Limiter Tie, Load Supervision. Construction * Cooling: Dual-zone, microprocessor controlled, continuously variable speed fans, front-to-back airflow. * Front Panel: Cast aluminum with integrated handles. * Dimensions (W x H x D): 19" x 3.5" x 16.2" * Weight: 28 lbs net, 36 lbs shipping * Protection: Amplifier is protected against reactive loads, faults and shorts. If one channel experiences a catastrophic failure, the entire amplifier will shut down. * Included Accessories: Rear rack ears, rack screws, operation manual, power cords, foam air filter.
