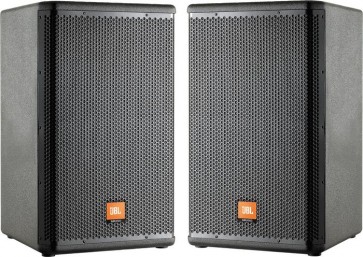

MRX512M 12" 2-Way PA/Monitor Pair

The MRX512M is a portable 12" - 2-way bass reflex PA speaker cabinet designed specifically for sound reinforcement stage monitoring applications. The MRX512M loudspeaker uses a JBL 262H 12" Differential Drive woofer and a 2408H 1.5" annular polymer diaphragm, neodymium compression driver. A 70° x 70° horn provides smooth, even coverage whether used in vertical (mains) or horizontal (monitor) orientation. NL4 connectors are provided on both ends of the audio speaker to keep cable runs tidy on stage when used in the monitor application and for easy access when used on tripods. A passive network provides accurate reproduction throughout the crossover region. For use on a tripod or over a subwoofer, JBL's dual-angle polemount is included. This feature allows the JBL speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. The enclosure is constructed of quality plywood and coated in JBL's rugged DuraFlex finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance. Power rating: 400W/800W/1600W Frequency range: 60Hz 20kHz Dimensions: 15"W x 25.25"H x 13.5"D 12" Differential Drive woofer for high-power capacity and light weight 1.5" annular polymer diaphragm compression driver Compact and low-profile for minimal obstruction of audience sight-lines 70° x 70° coverage for even and smooth response on and off axis Dual-angle pole socket for applications requiring tripod mounting Heavy-duty 16-gauge protective screen backed steel grille Tough DuraFlex enclosure finish Applications : Speech reinforcement Live performance stage monitoring Reinforcement of vocal and acoustic music High-performance satellite speaker for use with subwoofers Frequency range: 60Hz-20kHz Frequency response: 90Hz-20kHz Sensitivity: 97dB SPL Nominal impedance: 8 ohms Power capacity: 400W/800W/1600W Rated maximum SPL: 129dB SPL continuous Coverage pattern: 70° x 70° nominal Dimensions: 15"W x 25.25"H x 13.5"D Weight: 33 lbs. (ea.)
