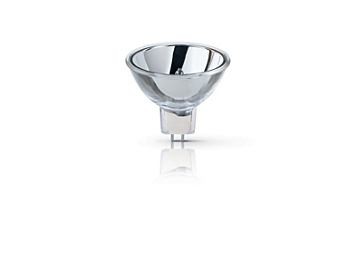

Philips ELC/5H 250W 24V

Philips ELC/5H 250W 24V is a replacement lamp for American DJ, Chauvet, MBT... Philips Halogen Low Voltage – long life, low costs. The long lifetime of most of the Halogen Low Voltage lamps is further extended by the unique P3 technology developed by Philips. This allows the lamp to be used at higher temperatures, thereby extending the lamp’s lifetime, reducing early failures, and resulting in fewer maintenance man hour costs. P3 also ensures consistency of high-quality light output, and allows the lamp to be used in any burning position, which enables more compact fixture designs. In addition, the compact filament produces a clean white light and high beam intensity for true natural colors on stage and without any hotspots. Specifications: * Philips Code 13163 * ANSI Code ELC/5H * Cap-Base GX5.3 * Bulb R50 * Bulb Material Quartz-UV Open * Reflector Finish Smooth * Operating Position s90 * Main Application Projection * Life to 50% failures 500 hr + More info / Hide info - More info / Hide info * + Zoom * * + Zoom Electrical Characteristics * Lamp Wattage 250 W * Voltage 24 V Light Technical Characteristics * Color Rendering Index 100 Ra8 * Color Temperature Technical 3400 K Product Dimensions * Overall Length C 49.4 (max) mm * Diameter D 50.7 (max) mm Luminaire Design Requirements * Pinch Temperature 400 (max) C * Bulb Temperature 900 (max) C * Working Distance WD 32 mm Product Data * Order code 924862720540 * Full product code 924862720540 * Full product name 13163 ELC/5H 250W GX5.3 24V 1CT * Order product name 13163 ELC/5H 250W GX5.3 24V 1CT/24 * Pieces per pack 1 * Packing configuration 24 * Packs per outerbox 24 * Bar code on pack - EAN1 8711500413475 * Bar code on outerbox - EAN3 8711500435736 * Logistic code(s) - 12NC 924862720540 * Net weight per piece 24.000 gr
